The point of this blog it to provide a visual walkthrough of some of the major steps of how a new build, pine 'stick frame' hempcrete house goes together. It's not a definitive guide, but an indicative peek into what you might be in for if you undertake such a unique and rewarding build. If you want to read more about the science behind Hempcrete, have a look at my main Hempcrete page here

During my time in Europe I've ended up working on three Hempcrete builds for Graham Durrant of Hemp-lime Spray. Graham has been very kind in not only giving me a job, but also always really took the time to really teach me the building science behind the material. Clients for Hempcrete builds are a rather weird and wonderful bunch who have a passion for building and/or conservation and have generally done a bit of their own research on the benefits of natural building materials, vapor permeability, thermal mass, natural insulation and so on. The clients are a family with a small scale sawmill who are themselves are an interesting story, and I've written about them a little bit here.

‍

Graham, my boss, normally rents an Airbnb for we workers near site, or offers a discount on the quote if the client provides a bit of food and a place to sleep. Both to which the family obliged in somewhat stunning fashion. I landed a treehouse, which is supported by a wonkily growing Ash tree under the joist line, replete with a gurgling torrent of a river, winding directly under the structure.

‍

The Hemp House.

The frame itself does not look too dissimilar to a standard stick frame house. Here in Scotland, studs are called out as 6 x 2 or around 150mm x 45mm. In Australia standard 90mm x 45 studs are fine and actually work to benefit a hempcrete build. This is because as hempcrete surrounds the frame, you want as much 'meat' or expanse of hempcrete on each side - the wall mass to the inside of the wall and the wall

mass to the outside of the wall - of the stud, With the stud being in the centre. In other words, the more mass of hempcrete you have which is unbroken by timber studwork, the stronger the hempcrete is. Which is why you want the stud frame in dead center of the wall detail. You generally want more than 80mm of hempcrete on either side of the stud frame.  Which is easy to achieve as most hempcrete wall thicknesses are called out between 250mm to 400mm.

Pic Credit to Will Stanwix, Author of The Hempcrete Book

The first placement of Hempcrete follows the perimeter of the house and sets the exact point where the walls start to grow, it should go without saying that this might be the most important placement of hempcrete in the whole build, as it will govern the position of everything. A few things are worth noting in Figure 2, where we have placed our first run. If you cast your eyes to where the cavity for the window lies, you have more hempcrete on the outside of the wall form. This is actually due to a miscommunication between the architect the client and the contractor. The architect was told that the absolute minimum hempcrete mass should be 70mm on a given side of the wall, which is what we've ended up with... We've been able to make it work and the house will stand tall regardless, still the sins of carpentry aren't forgotten easily by those who know. Second note; where you see the joint between two diagonal bracing timber members, you will also see black bitumen paint covering the gang nails. The lime element of hempcrete being alkaline provides many great benefits, it being a biocide, anti fungal, anti-rot and wood preserver it is also corrosive to steel. So any steel members, even galvanised, need to be protected. The third note is the glorious modular formwork system by geoplast. They can be configured into heaps of shapes and an be counted on to be really strong, straight and rigid. You can also go with some good plywood as these forms do come at a premium. When I start contracting in Australia, my system will be to keep some of these on hand for tricky or small areas and to use plywood for the bulk of the form area.

As you can see in Fig 3, we've placed a damp course membrane under the masonry plinth. This is because masonry can be capillaric. Capilarity is the phenomena of liquids rising and depressing (often against gravity) in a given passage. For example,  think about how water within a drinking straw sits higher than the surrounding water level outside of the straw. it is a sucking force and moisture can, if the site has a drainage issue, over time make its way up through footing and into the house. The DPC membrane acts as a kind of last resort barricade for such unfortunate situations. Hempcrete has far better abilities of dispersing diffusing moisture than any non-natural material, but you still do not want a disaster scenario moisture sitting at the bottom of a walls for years on end. Water creates valleys, destroys concrete and will eventually erode the pyramids, so do anything you possibly can to avoid it sitting, pooling or hanging around otherwise it will eventually destroy your home.

You can see (fig 4) how with flexible ply you can create curves and  organic shapes which would be quite difficult and expensive to create using timber or brick. You could do this with concrete but keep in mind that concrete is heavier by a factor of 8... A really serious formwork build up would have to be devised for concrete, whereas here, I have spent a couple of hours in the morning, jacking the ply into plumb and making sure the the curve is consistently equidistant from a center point in the tower. Once the first pour is done, you can move the ply formwork upwards to the next 'lift' immediately, so long as you don't knock into it hard for the remainder of the day. This allows you to actually complete several 'lifts' in one day. Making it far quicker than doing a tower in brick.

The first lift (fig 5), looking much greener and fresher is from 'virgin' hemp. The darker hemp on the second lift is 'drop' hemp, which had been shot out of the spray machine and failed to adhere to the wall (normally about 15% of sprayed hemp ends up as drop). This hemp is shovelled up and mixed in with the next hand placed batch. I will cover the spray applied method of hempcreting further on.

Almost 400mm of Hempcrete, as you can see in Fig 6. This would be three and a half standard house bricks. Any heat you create inside your house will seep into that first 100mm of Hempcrete and is banked up. The outside elements will affect of outside 100mm of Hempcrete. Imagine how cold this would be if you had stone in this thickness. The wall is not at all cold to the touch whatsoever.

Some of the flexibility and possibilities at your disposal with hempcrete, a snaking curve out of the tower, returning to the western facing wall. Here you see two runs of formwork, this allows you to leapfrog the old formwork up on top of the new, further saving time and also maintaining plumbness.

Figure 7 is a photo of the total amount of rubbish we'd generated at about the point we'd installed 50 cubic meters of Hempcrete, the mid-point of the build. This is either heavy duty bags from the Hemp, which can be reused as bin bags; or paper-plastic lined bags from the lime binder. Charlotte will sperate these and burn the paper in their fireplace. Normally, at the midpoint of construction on a conventional build you are calling for the skip-bin (around 5 cubic meters) to be emptied possibly once a week, once the job is in full swing, with all sorts of non recyclable offcuts from materials such as plasterboard, particle board flooring, primed and painted timbers, Styrofoam insulation, bricks and concrete. Average offcuts amount to around 15 to 20%  of the gross materials purchase, which is no small sum. As discussed before, with sprayed hemp, 15% ends up on the floor as drop, this 15% still finds itself in the wall as you can recycle, onsite, all of your hemp in the following wall.

‍

‍

An action video of a formwork lift

‍

In this photo you can see the Hempcrete finishing flush with a stud wall. This is because the wall will be clad in timber weatherboards. This makes for really quick and easy installation of the hempcrete, you can simply screw formwork or ply to the studs and you can start pouring. This will have great retrofit applications in Australia for weatherboard house renovations as the Hempcrete industry grows.

The colour differential in Fig 8 is due to us experimenting with another binder, which can come in a variety of colours depending on the source, aggregate, pigment, water content, rate of absorption, original surface texture and erosion. The color spectrum of lime can vary from bright white, light grey, slight pink or ochre colors. I'm not going to cover lime here, as to give an understanding of lime will be a tangent too long for of a blog about 'how a hemp house comes together'. (Have a read about lime here, on my main page)

Here you can see the Hempcrete sprayer in action. This is the alternative to the hand-placed Hempcrete method that I spoke of before. This is process is essentially ran by two pumps; a conventional concrete pump for the lime and a specialised hemp dry-pump. The two are shot separate through the lance and converge on the wall, the lime binder battering and coating the Hemp upon impact. This method is great for creating curves and infilling hard to hand-place spots, such as where the wall meets the ceiling or even spots you might have missed during hand placing. Towards the end of this video you can see how we have attached a horizontal batten with the leading edge being the reference point for the finish line of the hempcrete. From this batten we hang down a straight edge, allowing us to flatten off the wall and precisely shave off high spots on the fly.

Some Hempcreters prefer the sharp lines and modern look of hand placed, shuttered walls. Other prefer the rounded and blended look of sprayed hempcrete. There is a fair amount of crossover I would say, and you can achieve modern and classic styles employing both of these methods. It terms of efficiency and quality, some say spraying is quicker, others say spraying is too messy because you have about 15% that doesn't make it onto the wall. Other say hand-placing can be limited. Both have their pro's and cons and the jury is still out as to which method will eventually come out of top as the future industry standard. In reality, probably both.

‍

‍

A time-lapse of hand placed Hempcrete. This was on the second floor of the house so the tubs had to be lugged up a ladder and onto the far side of the building, even so, we are in-filling at a decent rate. With a crew of four we were able to get over five cubic meters of Hempcrete in a three to four hour session. A few notes; Here you can see the thickness of the walls easily. On a standard house build, the timber frame would cut through the insulation totally, leaving a passage for easily thermal bridging and thus heat loss and higher energy costs. The fact that hempcrete creates a complete thermal envelope of the buildings allows for a much higher performance and with no wall draughts, post-occupancy. Another note, on tamping, you might see how only the edges are tamped down. This rammed hempcrete is obviously stronger and more tightly bonded. The inside is left untamped or lightly patted to leave aerated and thus more insulative.

‍

‍

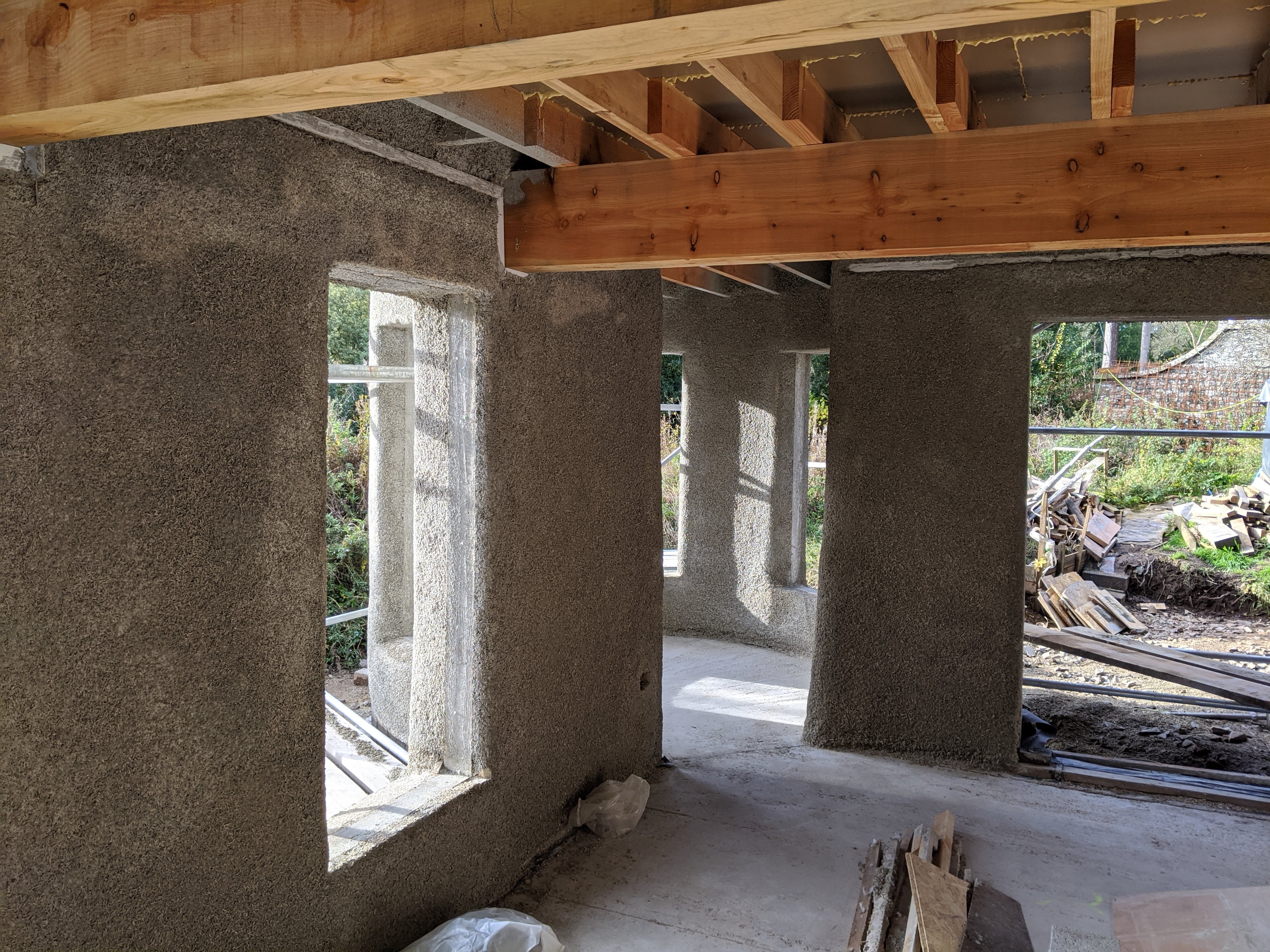

Try to imagine being able to shape your window sill, after installation, with any other material. Brick? Concrete? I did this without too much effort, in about ten minutes. As you can see, hempcrete, being somewhat elusive to describe, is a type of organic sculptable masonry so to speak.

‍

Graham working on a curved wall  (Fig 9) where a pot-belly stove will end up. Charlotte asked for this curved wall in the last days of the job, not an issue adding last minute ideas.

‍

Below here you can see how the final build turned out. Thanks for reading.
